Before & after

GCC LaserPro service results.

Genuine examples from completed service work—showing measured output, optics condition, machine cleanliness and mainboard work before and after attention.

Measured improvement

What careful inspection and correction can change.

Results depend on the machine and fault. These examples document the actual work shown; they are not a promise that every service will produce the same gain.

GCC Spirit 25w — output measurement

POWER / ALIGNMENT / OPTICS

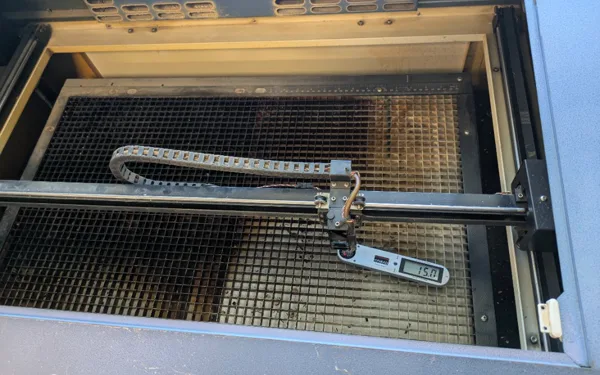

Power meter reading 15.0 watts on GCC Spirit before service

BEFORE · 15.0 W

Output before service

Synrad power meter on the honeycomb bed recorded 15.0 watts before full alignment and optics work.

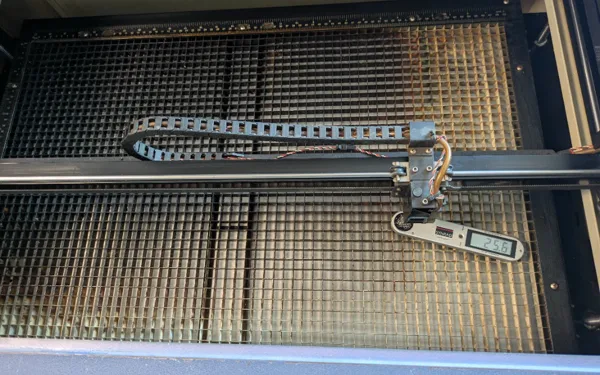

Power meter reading 25.6 watts on GCC Spirit after service

AFTER · 25.6 W

Output after service

25.6 watts measured after clean optics, correct alignment and service checks.

Mercury 3 40w — full service

CONDITION / ALIGNMENT / COMPONENTS

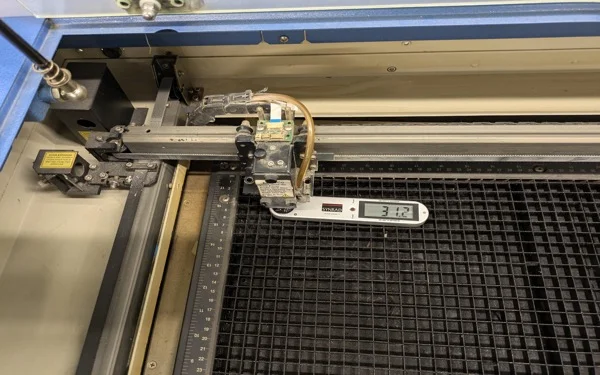

GCC Mercury 3 before servicing

BEFORE

Initial condition

The machine was inspected and prepared for a full service, with the carriage cover removed for access.

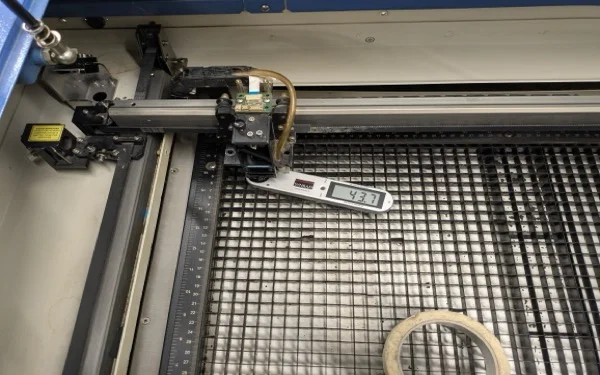

GCC Mercury 3 after servicing

AFTER

Checks complete

Alignment, optics and components checked and corrected, with a recorded 40% power increase. The carriage cover was refitted.

Mercury 3 — mirrors and lens

OPTICS / CLEANING / ALIGNMENT

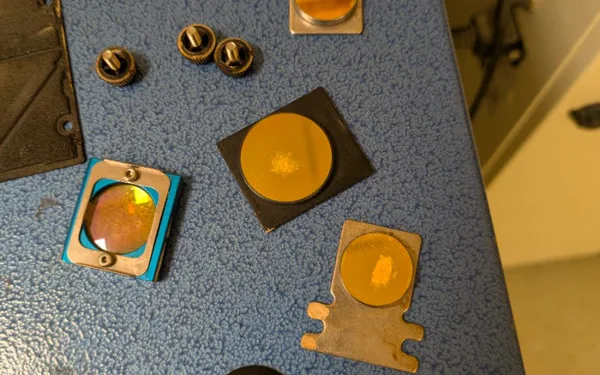

Mercury 3 optics with residue and burn marks before service

BEFORE

Optics removed for inspection

Heavy residue and burn marks were visible on the mirrors and lens, ready for cleaning or replacement as required.

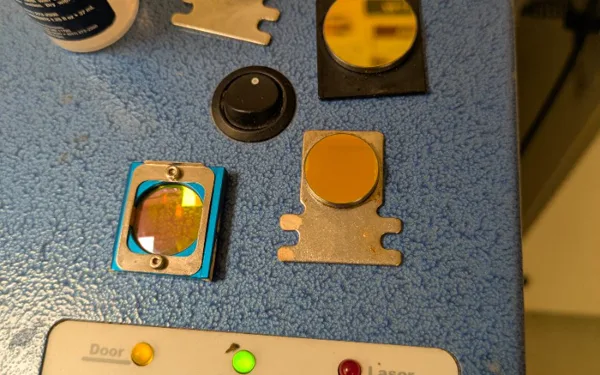

Mercury 3 optics cleaned after service

AFTER

Cleaned and prepared

The components were cleaned and carefully handled, ready for refitting, alignment and power checks.

GCC LaserPro — mainboard service

ELECTRONICS / INSPECTION / CLEANING

Dusty GCC LaserPro mainboard before service

BEFORE

Pre-clean inspection

Mainboard condition documented before service and component cleaning.

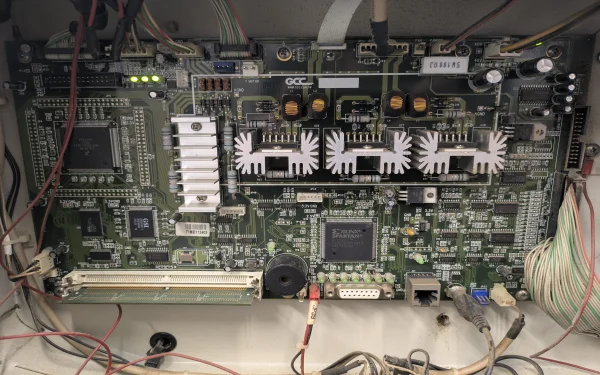

GCC LaserPro mainboard after service cleaning

AFTER

After service

Components cleaned as part of the service, with the finished board condition documented.

Technical work

Inside the GCC LaserPro systems SC Laser supports.

Additional photographs from hands-on GCC LaserPro inspection and diagnostic work.

Power meter held at the direct output of a GCC laser tube during measurement — LASERPRO · POWER
Direct tube-output measurement during technical checks.

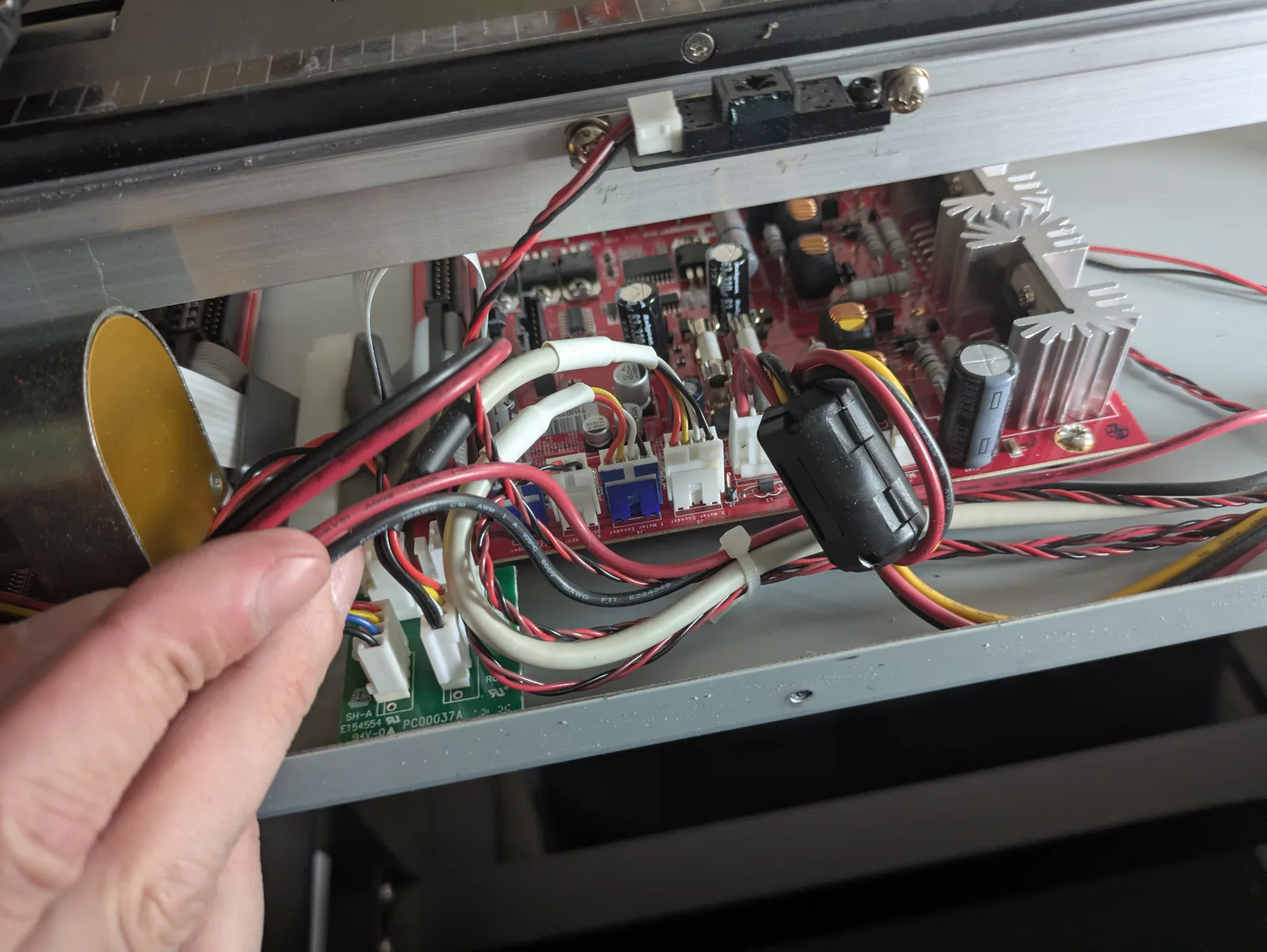

GCC Jaguar V driver board and wiring inside the machine — JAGUAR V · ELECTRONICS
Driver board and connected wiring exposed for inspection.

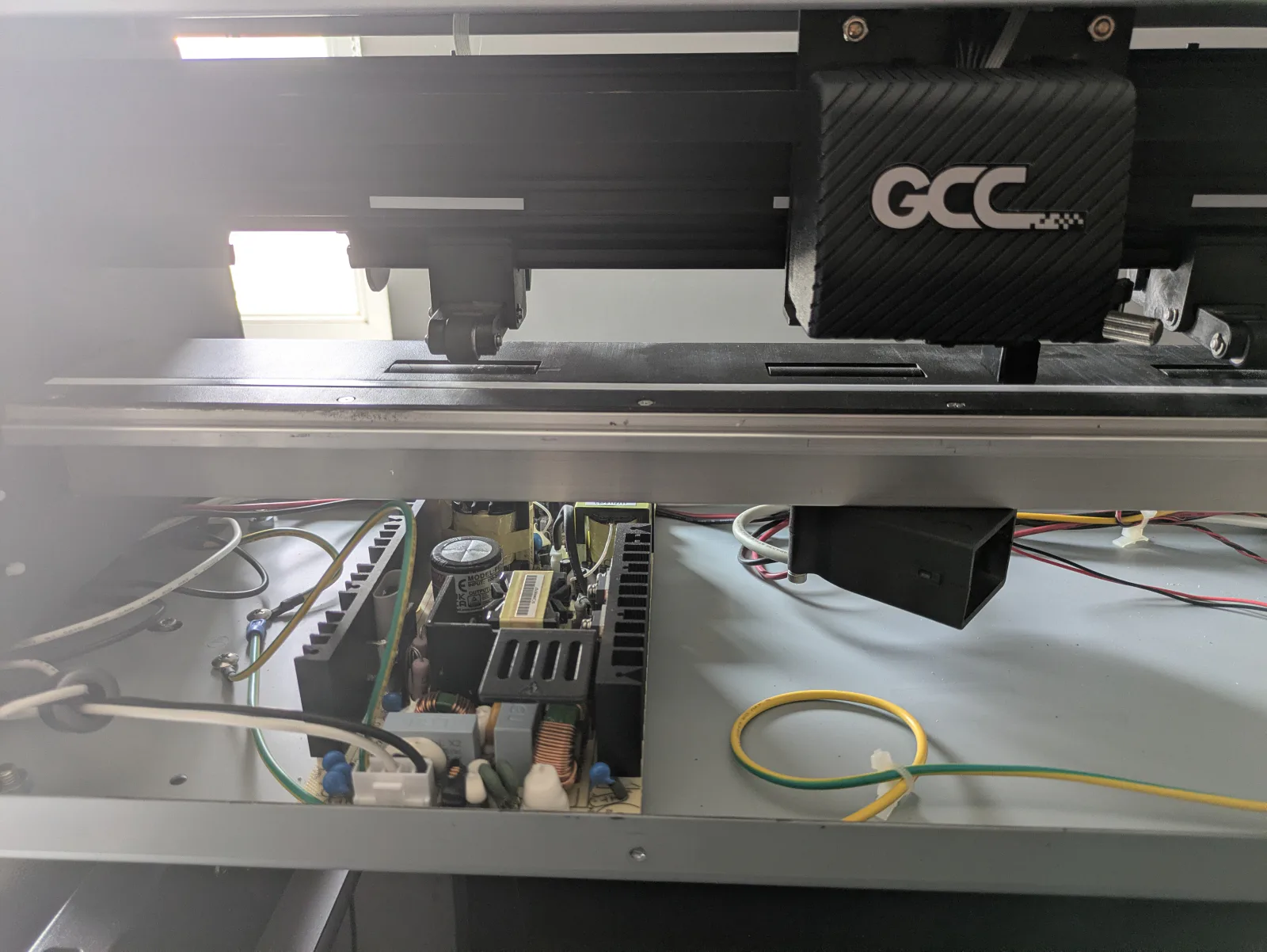

GCC Jaguar V power board beneath the carriage assembly — JAGUAR V · POWER BOARD
Power board and surrounding machine components during access.

GCC Jaguar V driver board connected to a digital multimeter during testing — JAGUAR V · BOARD TEST
Driver board connected to a digital multimeter for measurement.

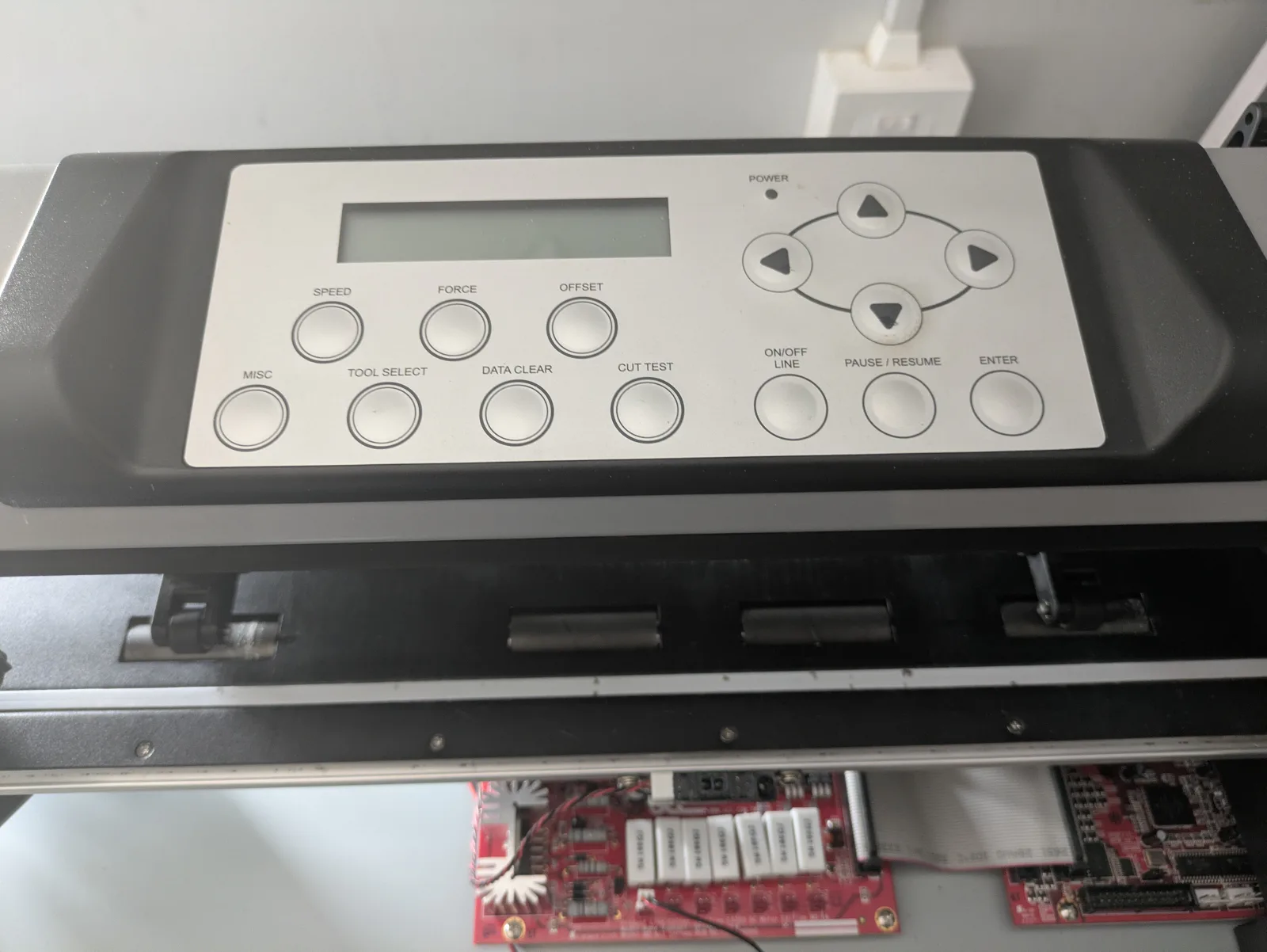

GCC Jaguar V control panel with internal electronics visible below — JAGUAR V · CONTROLS
Control panel with internal electronics accessible below.

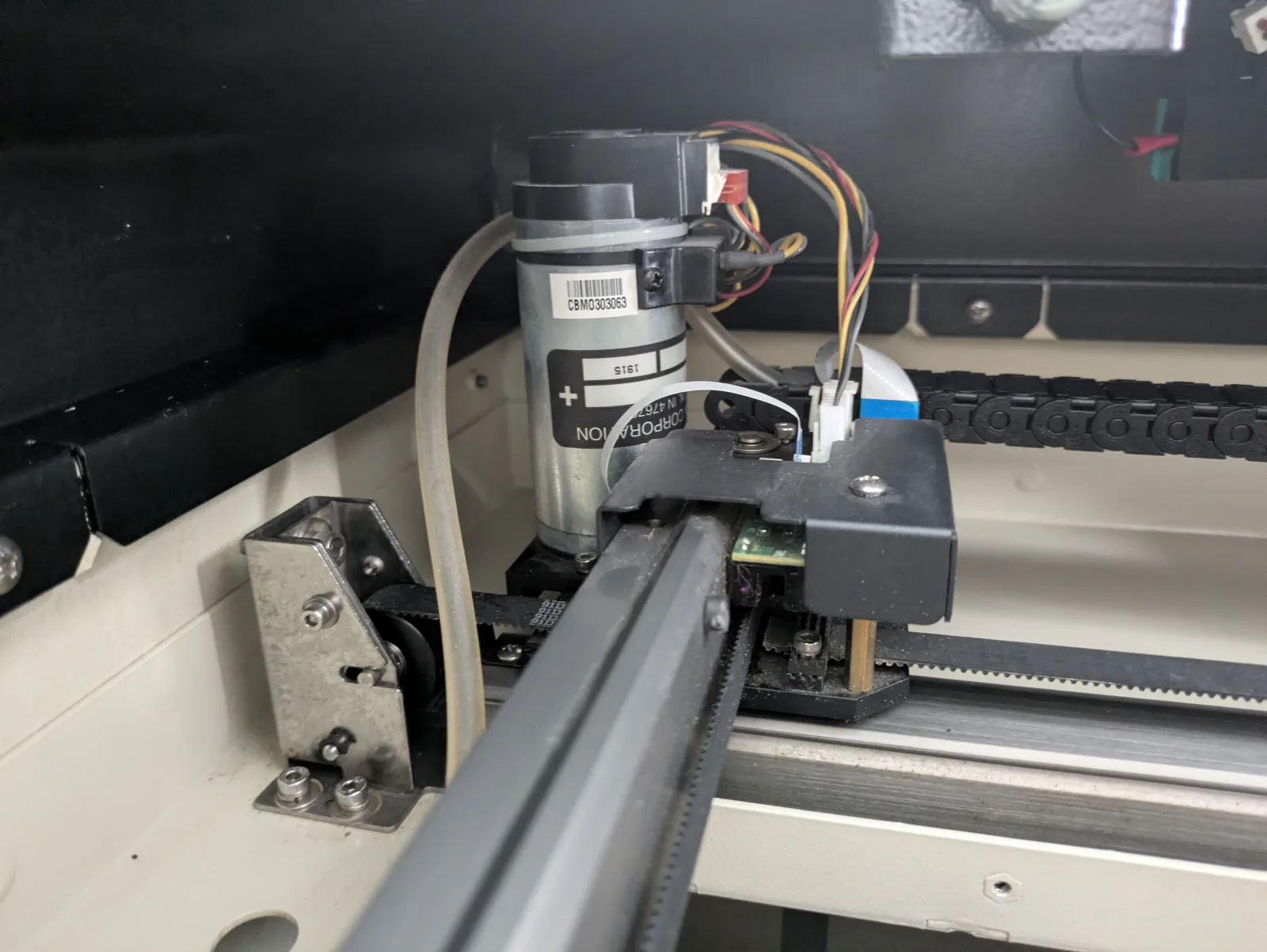

GCC X252 X-axis motor and drive assembly — X252 · X-AXIS
X-axis motor and drive assembly exposed for inspection.

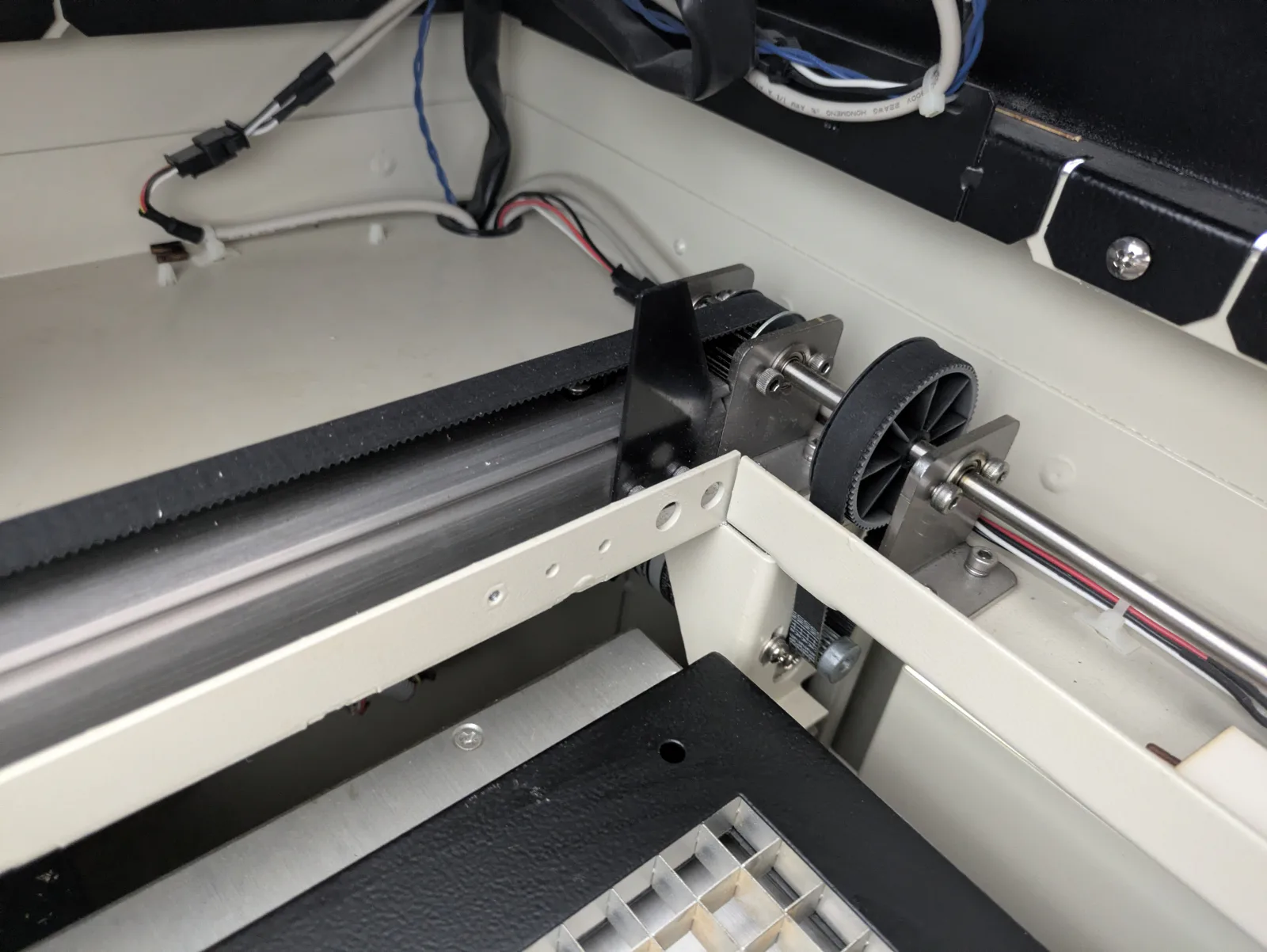

GCC X252 Y-axis flag and motion assembly — X252 · Y-AXIS
Y-axis flag and surrounding motion components.

GCC X252 laser tube with a Synrad power meter positioned above it — X252 · LASER TUBE
Laser tube and power meter positioned for output measurement.

GCC Mercury 3 head carriage, rail and drive assembly — MERCURY 3 · CARRIAGE
Head carriage, rail and drive assembly exposed for inspection.

GCC Mercury 3 25w bed, head carriage, power meter and control panel — MERCURY 3 · 25W
Machine bed, head carriage, power meter and control panel during measurement.

Second mirror assembly inside a GCC Spirit laser — SPIRIT · MIRROR 2
Second mirror assembly and mounting hardware inside the machine.

GCC X252 control panel displaying an engraving job — X252 · CONTROL PANEL
Control panel displaying the active engraving-job settings.

GCC Mercury 3 working bed with material positioned beneath the carriage — MERCURY 3 · WORKING BED
Working bed with material positioned beneath the carriage assembly.

GCC Mercury 2 control panel and status indicators — MERCURY 2 · CONTROLS
Control panel display, function buttons and machine status indicators.

Laser power-supply wiring and connection board inside a GCC machine — LASERPRO · POWER SYSTEM
Power-supply wiring and connection board inside the machine.
